Scientific software quality: what would it take to convince software engineers?

As I mentioned, last week at the CSER conference I presented a poster summarising my study. I got some great feedback about the coherence and integrity of my study, as well a great question: what would it take to convince the software engineering community of anything about the quality of scientific software?

I had about eight people stop by and actually engage in conversation with me. For most people (mostly other students), this was their first time thinking about scientific software as a type of software worth studying on its own. I had to walk slowly through the first slide to explain how computational scientists use software models to do science. I think this motivated the research questions well, since after the first slide most people understood that climate models are being built and used in an entirely different context from, say, accounting software: there isn't the same certainty about what correct output should look like.

I then explained my approach and findings. Almost everyone had one, or both, of the following reactions:

• I'm not convinced.

Yup, just the one. I knew this was their reaction because either people would say so, or they would stare at the poster uneasily until I asked them questions about what they felt about the study. Some felt that the whilst the different parts of the study were reasonable in their own right the study didn't "gel" in a way that either built up (or eroded) their confidence in the quality of climate modeling software. They felt just as unsure about it as before I had explained my study and results.

Here's one example. With one fellow, a professor of software engineering (let's call him Mr. B), I pointed to the defect density chart. This one here:

And I asked whether it gave him any insight or feel for the software quality of the models. He said that yes, this chart led him to believe that the Model B and C were of good quality, and model A was not of great quality. When I asked whether it was the absolute defect rates or the comparison between the different models that led him to believe this, Mr. B said it was the relative rates. But then he also agreed that all of the models had defect densities that were "good". Hmmm... wait, what?

After going through the rest of the study, I asked him what he thought of the software quality of climate models and he said that they were "not very good". He maintained this even when I pointed to the defect density chart earlier on. I asked why he felt that, and he said that because there are so many ways for the climate scientists to interpret and represent their results that they may, even unknowingly, present their models as being more accurate than they really are. He felt that the models could be full of bugs and the scientists may never notice.

To be clear, I'm not convinced either way about the software quality of climate models. I'm trying to leave my opinions for later, once I've collected more interview data at least (and I've expressed before how poor I think measures like defect density are at gauging quality). But, one thing I've come to understand about the climate modelers is that they care very deeply about the correctness of their code -- they most certainly do not take it for granted. I pointed this out, to Mr. B, and I explained some of the ways I've learnt that the climate modelers verify and validate their models.

Mr. B was still unconvinced. And so, as I say, neither were many others.

I understand this. I'm not sure that what I've done convinces me that climate modeling software is "good" or "bad" either. But maybe good/bad and high/low isn't a meaningful way to thinking about quality. Still, I have this urge to distill what I've learnt about the scientific software quality into a quantity. I dearly want some objective measuring stick or benchmark to be able to judge/compare/assess software quality. I think this is what the folks at the poster session wanted too, and didn't get from my poster.

Near the end of the conversation, I asked everyone this final question: what would convince you, as a software engineer, that a climate model is of good software quality or not? I asked this question at the CASCON workshop as well. No one had an answer. In fact, most people just dismissed the question with a laugh. Is it that silly of a question? I think it's a great one (but sure, maybe a touch rhetorical).

I've asked a few climate scientists the same question in earnest: what convinces you that climate model software is of good quality or not? The answers have been quite varied. Knowing the history of the model, or the development team, the state of the documentation, whether they've seen the model code or not, and generally how open the development is, are some of the things that factor into their assessment. Defect densities do not.

What I appreciate about the climate scientists' answers is that they focus more on the internals of the development process than they do on metrics. My interpretation of this is that knowing that the modeling group is following the right processes for building the model, and being able to verify that yourself, is a better indicator of the software quality than any defect metric. (I'm of the mind that this is true in general of software quality assessment... but this is quite a new thought for me and I haven't spent much time thinking through the implications.)

But anyhow, what this leads me to is the idea that maybe a more satisfying way of assessing software quality is some sort of "maturity" assessment, like what is done as part of the CMMI process. "Best practices" for developing and verifying climate models could be established by the community to which each modeling centre could be assessed against. From my interviews so far I can already suggest some of the factors that would go into such standard (check the last two slides).

I'd guess that this sort of assessment scheme would be acceptable to climate scientists, but would it convince the software engineering community? If not, what would need to be included in the assessment? Or, is it just a matter of educating the software engineering community as to the nature of scientific software?

Addendum: As Jorge suggested, maybe I received such suspicion at the poster session simply because of the venue. Poster sessions rank at the bottom of the academic credibility scale, so maybe everyone at the poster session is bound to be suspicious.

Vegetables

Yep, this post is not about research. It's about vegetables. Specifically, vegetables I just received from two of my friends, Tarrah and Nathan. Just two years ago they bought a farm up near Neustadt, Ontario. They are making a go of starting up an organic, mixed vegetable and livestock farm: Green Being Farm (website under construction).

If you know me, you know that I often affectionately talk about working there last summer. And if you know me, you may have also had the opportunity to eat some of the produce grown at their farm last year (those of you in the lab may remember the potato fairy delivering piles of potatoes to your desk last summer), or you may have been one of the lucky folks to get in on their amazing pastured pork, chicken or turkey.

To eat good, local organic food is a real treat. To eat good, local, organic food that friends of mine grew is amazing. I'm so proud of them and what they are doing, and I'm so proud to be eating their produce. I regularly have doubts about the benefit of my research to the world, but I never doubt the benefit of what people like Tarrah and Nathan are up to.

Modeling the solutions to climate change, part I complete.

A couple of weeks ago I mentioned a side project a few of us in the software engineering group are undertaking. In short, the purpose is to explore the idea of modeling (graphically, not in code) the various solutions to climate change proposed in a couple of recently published books. The objective is not only to model the solutions, but to model them in such a ways to make it easy to explore the differences and similarities between the different solutions. We have restricted ourselves to just looking at wind power, as a way to make this experiment do-able in a shortish period of time.

Our plan has been to look at each book in turn and completing several different types of model for each book: an ER model, a goal model, and maybe a systems dynamics model. Once we've completed those then we'll explore how to relate them to one another.

We began by looking at a David MacKay's book. Last time I posted the ER diagrams and the start to the goal models. Well, we're done the goal models now, so here they are.

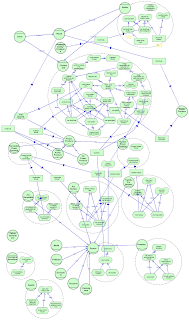

This first goal model covers the first chapter of the book. This has very little to do with wind power, but gives us the the actors and some context from which to build out the wind power model.
